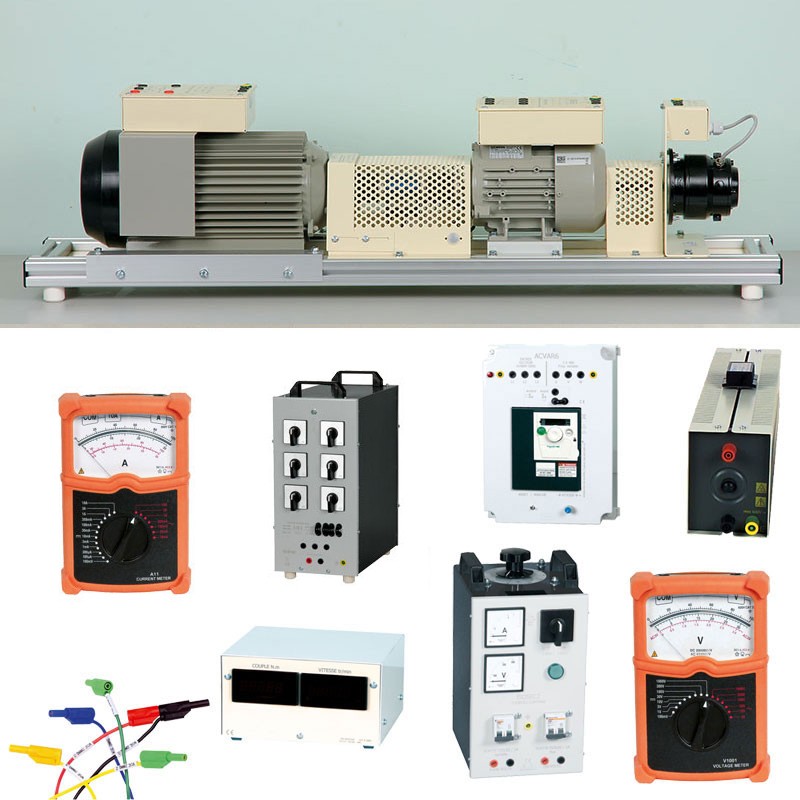

Study of the 3-phase asynchronous motor & the DC generator 300W

EDUCATIONAL OBJECTIVES
• Study the stator and the rotor of an asynchronous motor.
• Study the pairs number of poles and the influence on the rotating speed.
• Note, calculate and plot the electrical and mechanical quantities of the motor.
• Realize the balance sheet of motor powers.
• Study the armature/inductor windings of a DC machine.
• Understand the influence of the Inductor winding on the speed of rotation.
• Note the voltages and currents in the armature and in the inductor.
• Note, calculate and plot the electrical and mechanical quantities of the generator.
• Realize the balance sheet of generator powers.
• Use an ammeter clamp.
