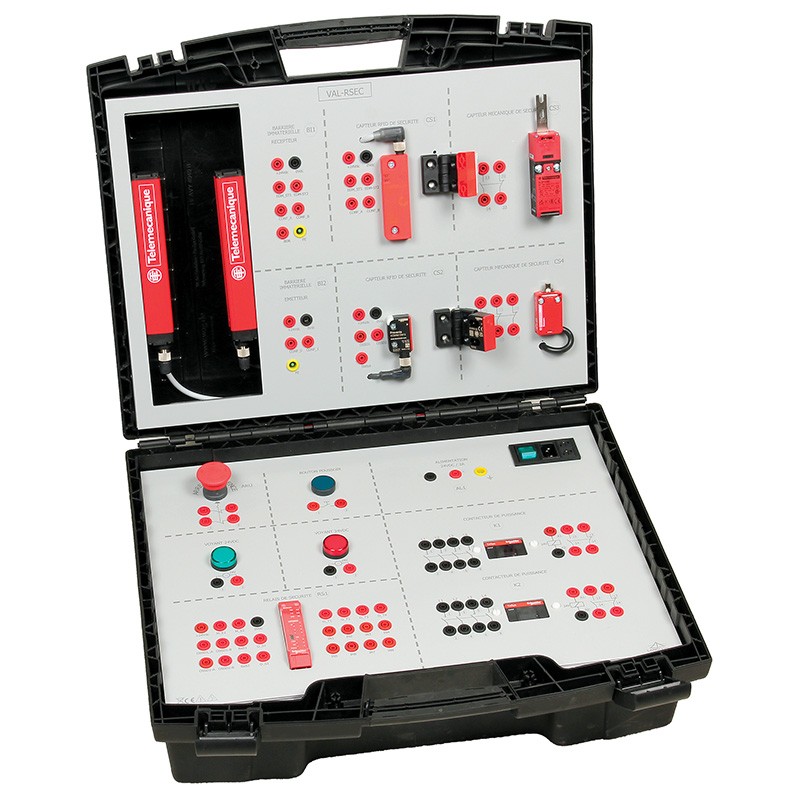

Machine safety study case

This educational model allows for the discovery and understanding of machine safety functions. Based on a Schneider® Preventa safety relay, it demonstrates the centralized
management of emergency stops and protective components. The installation combines two complementary detection technologies: non-contact safety sensors and mechanical safety sensors.

The included, free "SoSafe Configurable" software (available in French, Windows® only) allows configuration of the safety relay via a USB connection (cable supplied).
It enables configuration of the safety logic by programming logic blocks (AND, OR, NOT) and provides real-time visualization of the input and output status.

Component identification information and other technical specifications are screen-printed on the sides. Wiring is done with jumper wires on 4mm terminals (cables supplied).
