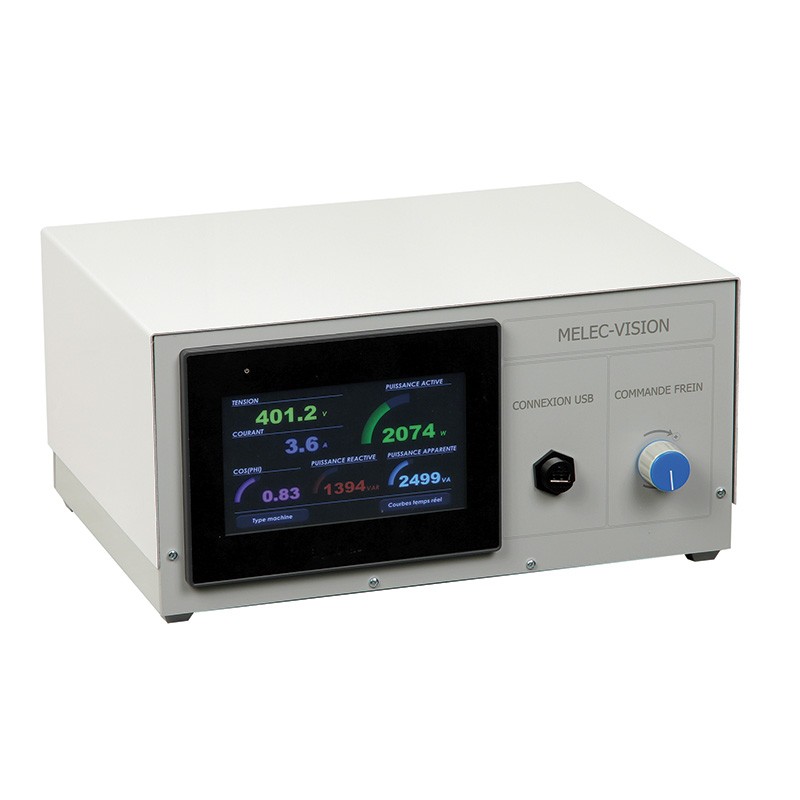

Visualization of mechanical and electrical quantities with data acquisition

• Simultaneous display of mechanical quantities (torque, speed, and power) and electrical quantities (voltage, current, active power, reactive power, and power factor).
• Measures continuous, single-phase, and balanced three-phase true RMS values.
• The unit also includes a power control for a powder brake, via a potentiometer on the front panel.
• The device's wide bandwidth allows measurements on chopped signals (frequency converters, industrial choppers, rectified power supplies, etc.).
• The device's voltage and current inputs are floating relative to each other and to ground.
• The device offers various display configurations to suit the rotating machine being studied. • In DC or synchronous machine mode, the device allows visualization of the main power supply and the excitation power supply.
• Real-time visualization of the curves as a function of time for each quantity.
• Data acquisition and storage on a USB flash drive (not included) in .csv format for processing with your preferred spreadsheet software.
• After a short acquisition, it is also possible to display the speed variation curve as a function of the applied torque (X/Y graph) on the device.
• The display connection is made on the rear panel of the device.
• Compatible with brushless torque sensors and 10V tachometer generators.

Rear of the housing
• Input terminals for the main current measurement socket
• Terminals for the main voltage measurement socket
• Input terminals for the auxiliary current measurement socket
• Terminals for the auxiliary voltage measurement socket
• Input terminals for the speed measurement socket (10V / 1000rpm)
• DIN connector for reading and powering a brushless torque meter
• Output terminals for connecting a powder brake control
