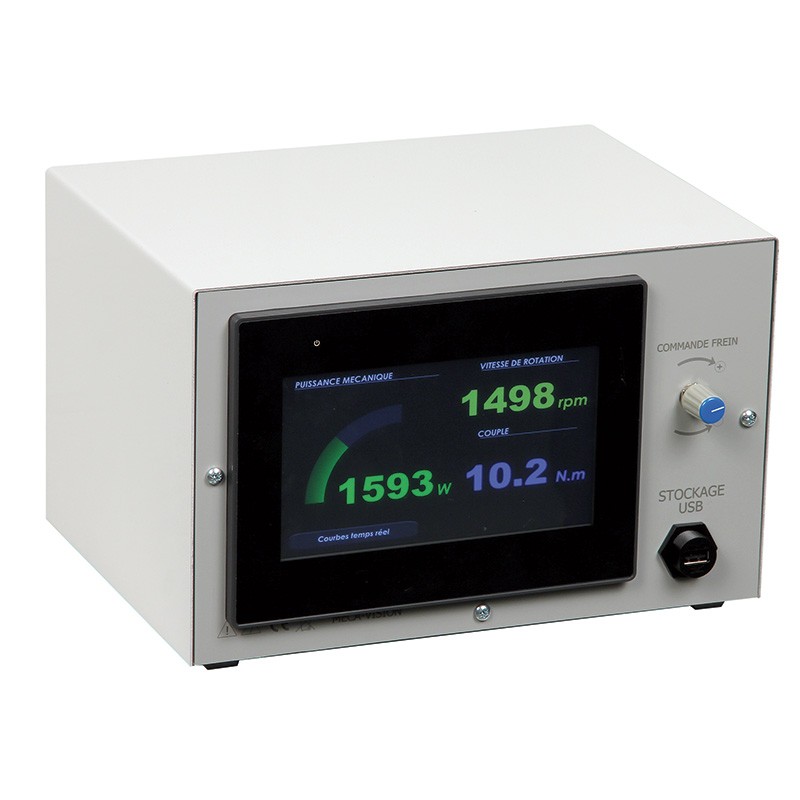

Visualization of mechanical quantities with acquisition

• Simultaneous display of mechanical quantities: torque, speed, and power.
• Power supply control for powder brakes via potentiometer.
• Real-time display of curves as a function of time for each quantity.
• Data acquisition and storage on a USB flash drive (not included) in .csv format for processing with your preferred spreadsheet software.
• After a short acquisition period, it is also possible to display the speed variation curve as a function of applied torque (X/Y graph) on the unit.
• The display unit is connected to the rear of the device using 4 mm safety cables for speed measurement and a DIN cable for torque acquisition.
• Compatible with brushless torque sensors and 10V tachometer generators.

Rear of the unit:
• Output terminals for connecting the control of a powder brake
• Input terminals for speed measurement (10V / 1,000 rpm)
• DIN connector for reading and powering a brushless torque meter
